VIN : SCCLHHAC7BHA12388

Upgraded the Airbox to Cup Airbox

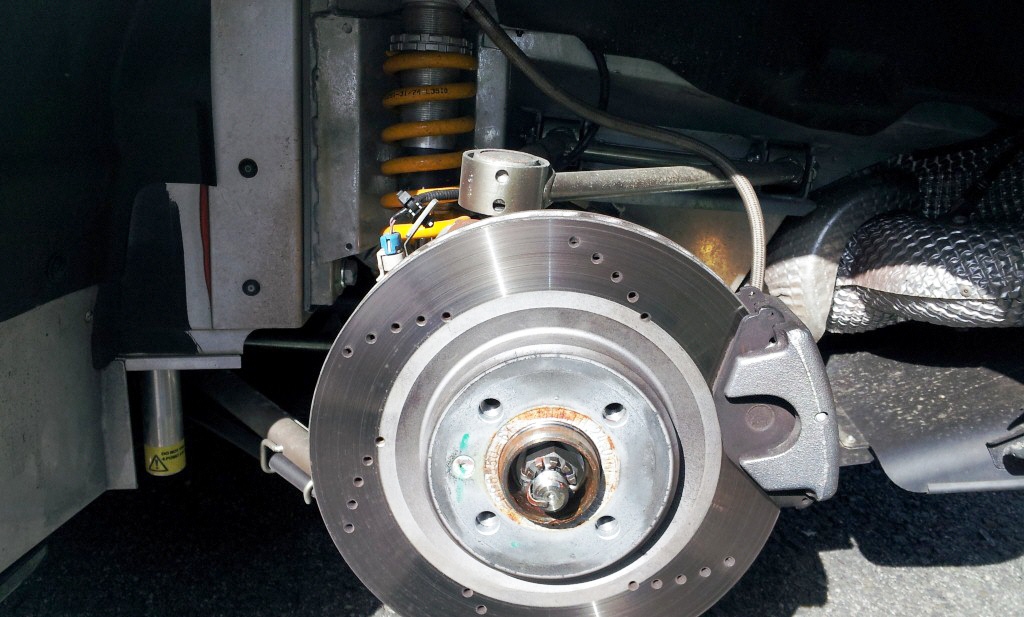

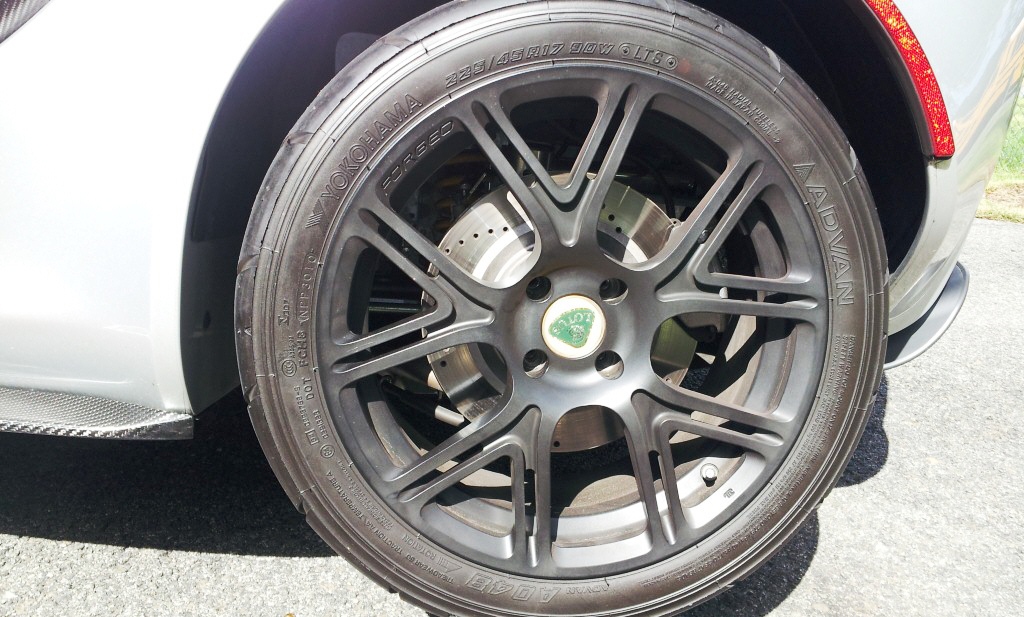

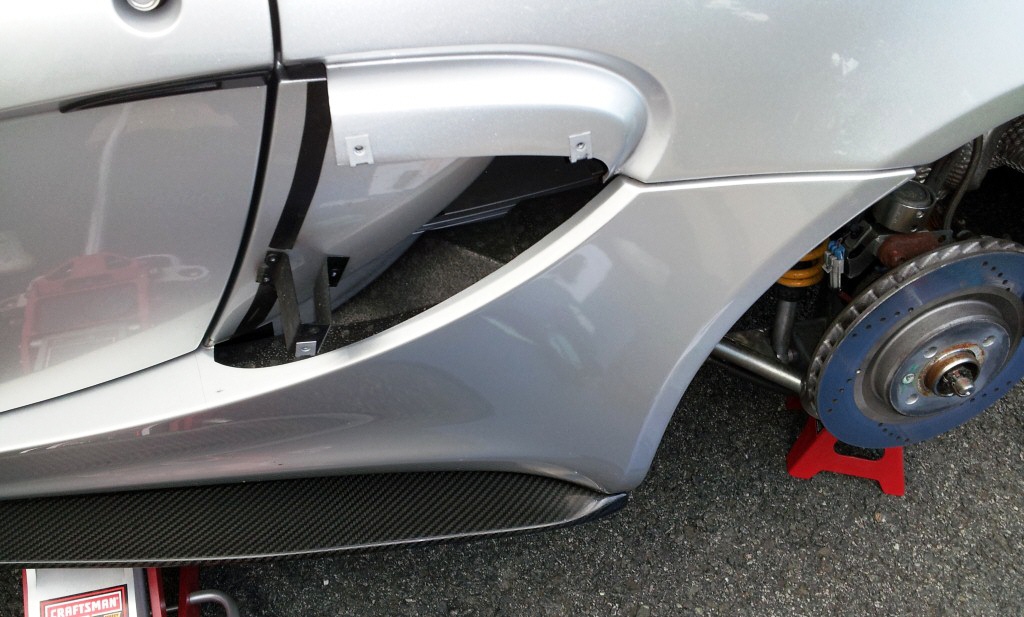

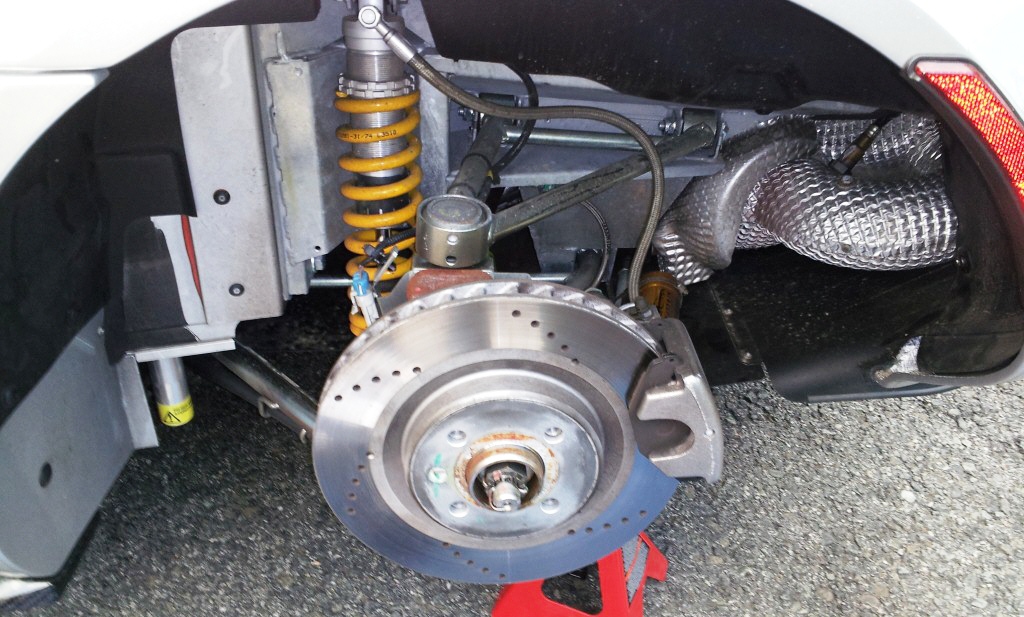

Raised the car and removed the rear driver side wheel and the air scoop.

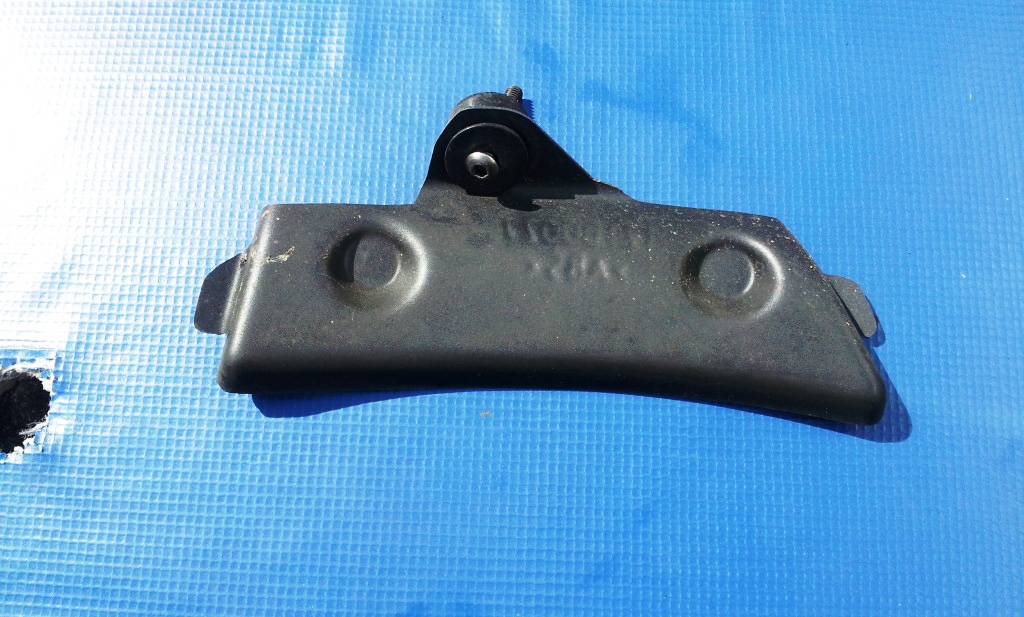

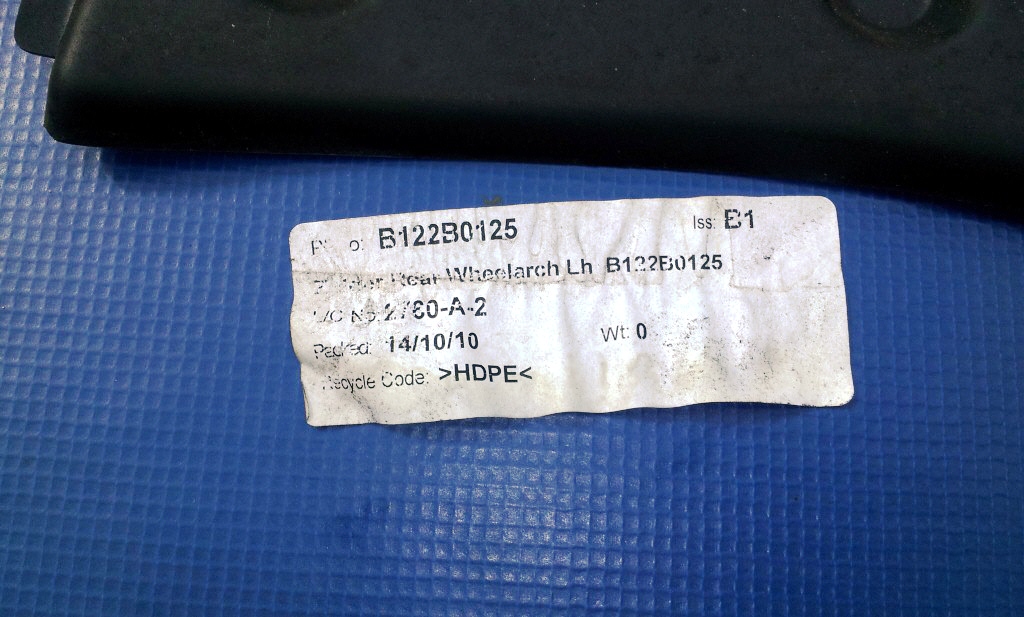

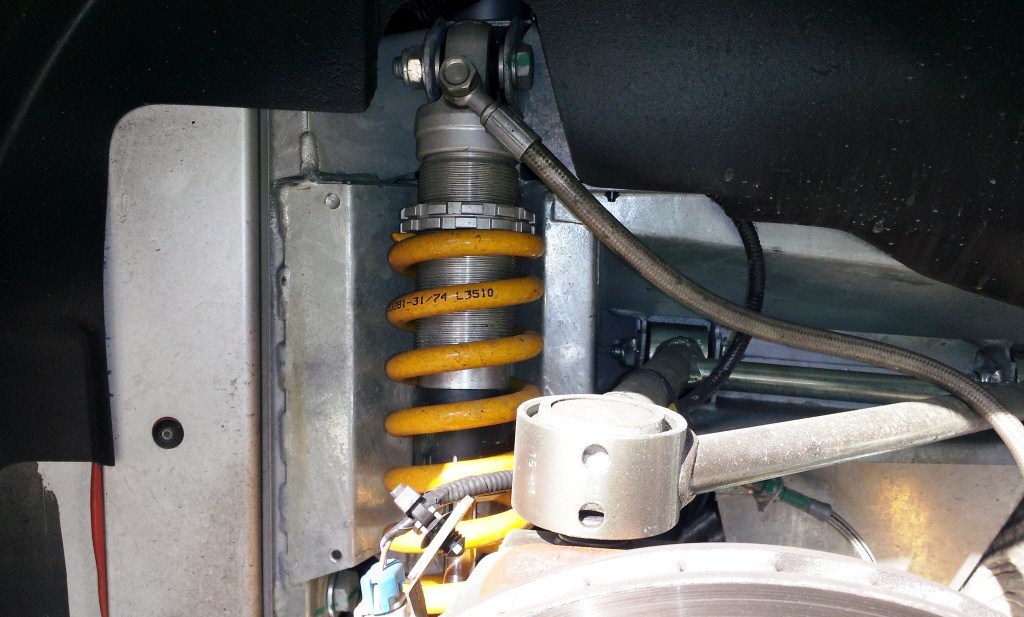

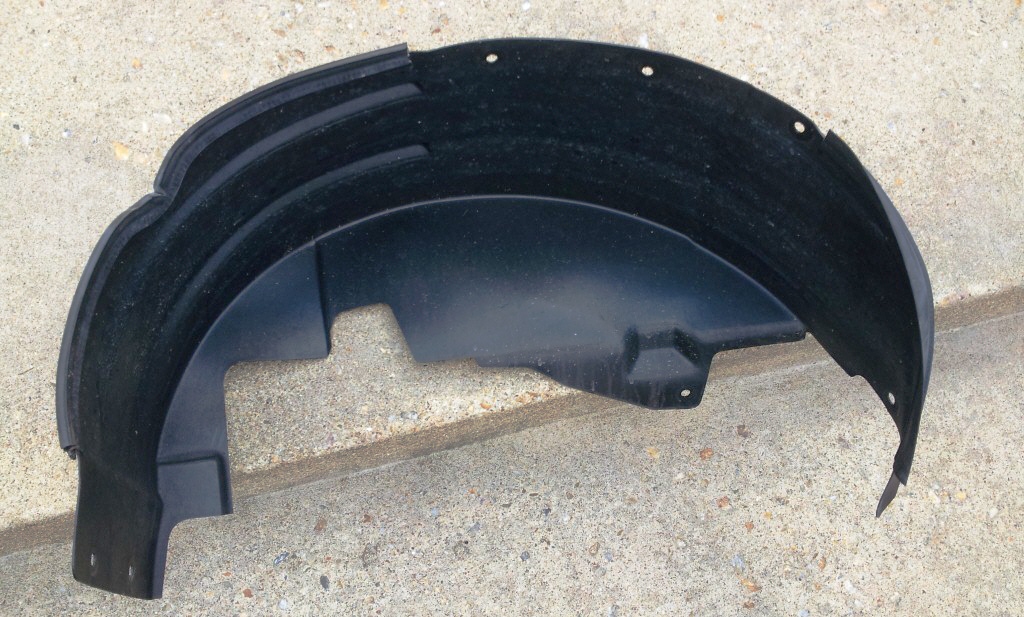

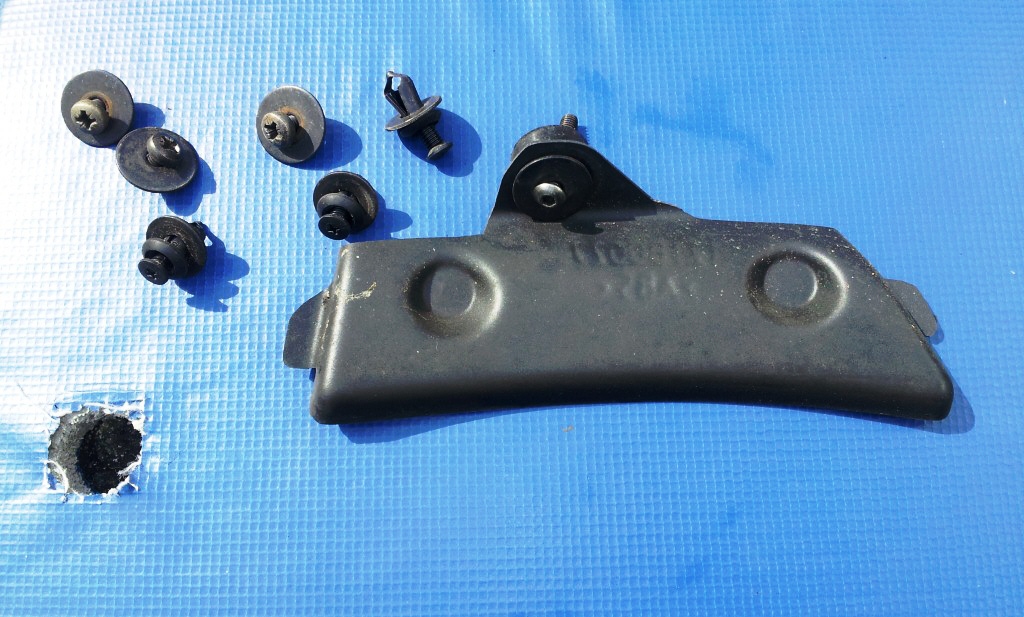

Removed the wheel cover.

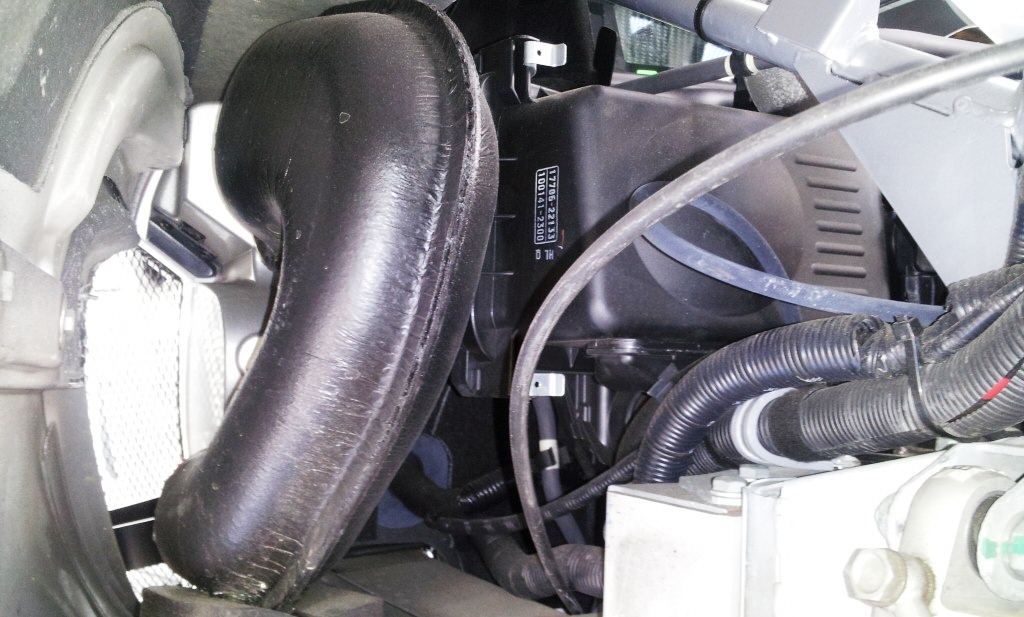

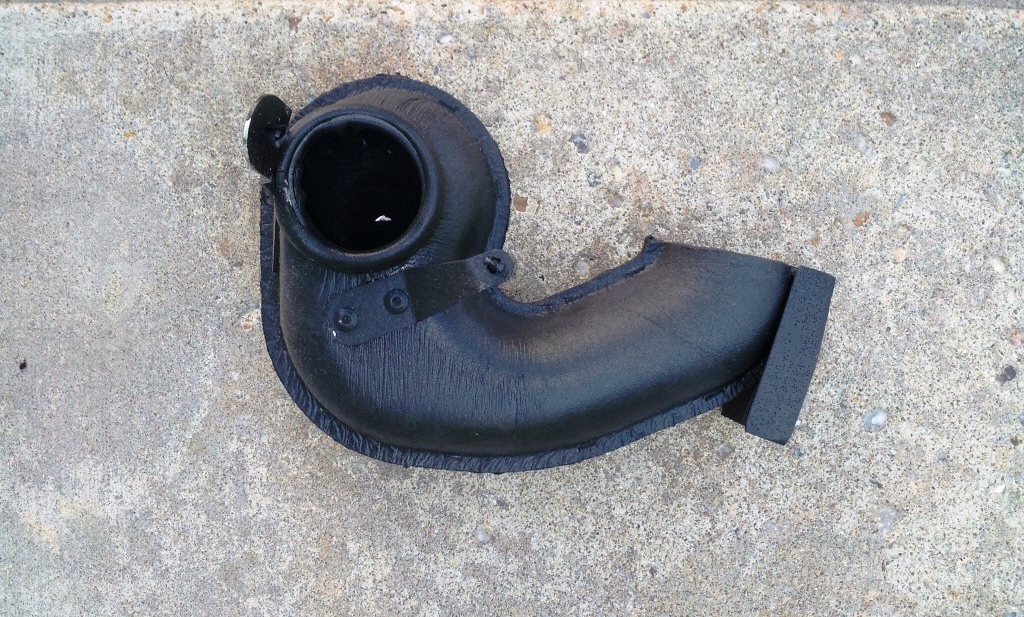

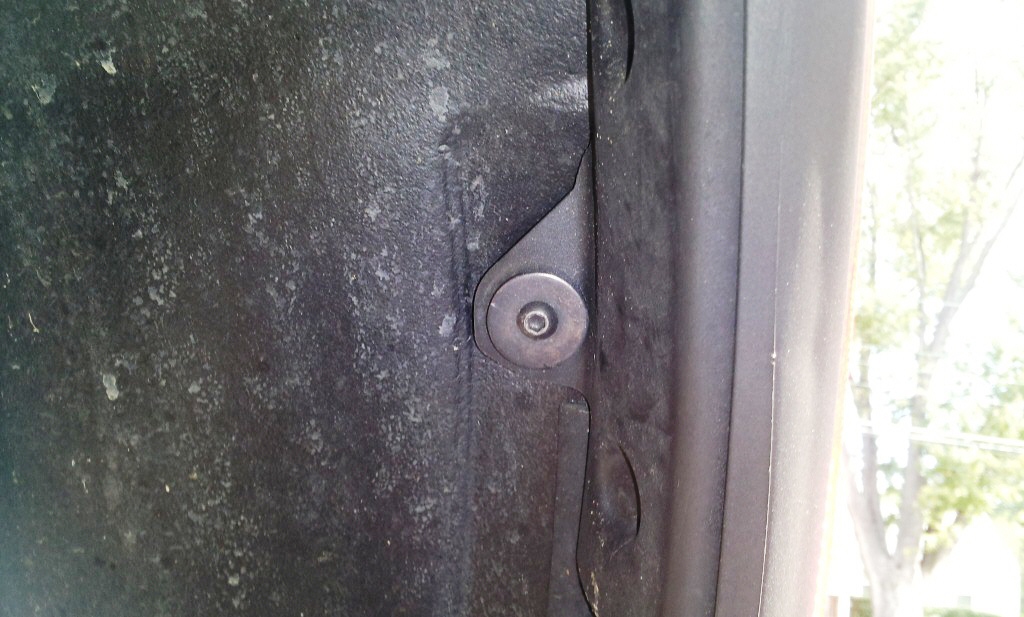

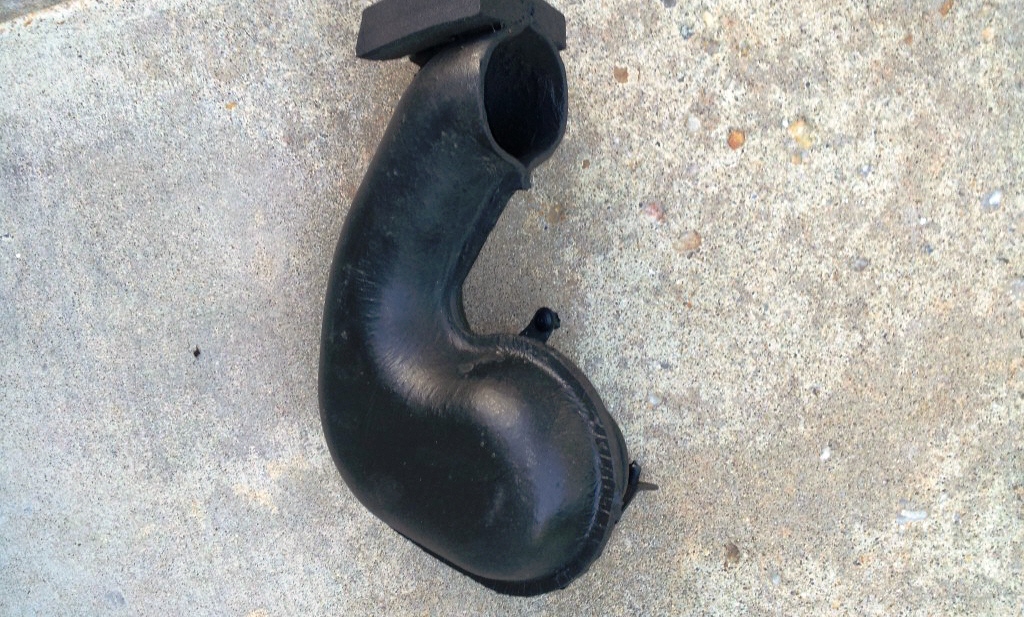

Removed the two plastic screw rivets to remove the snorkel.

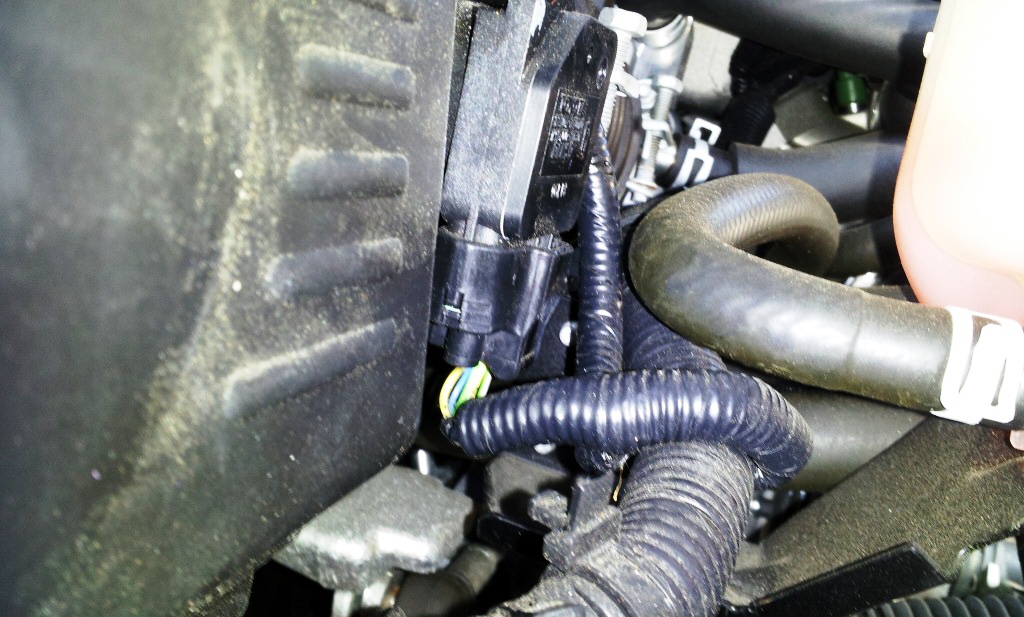

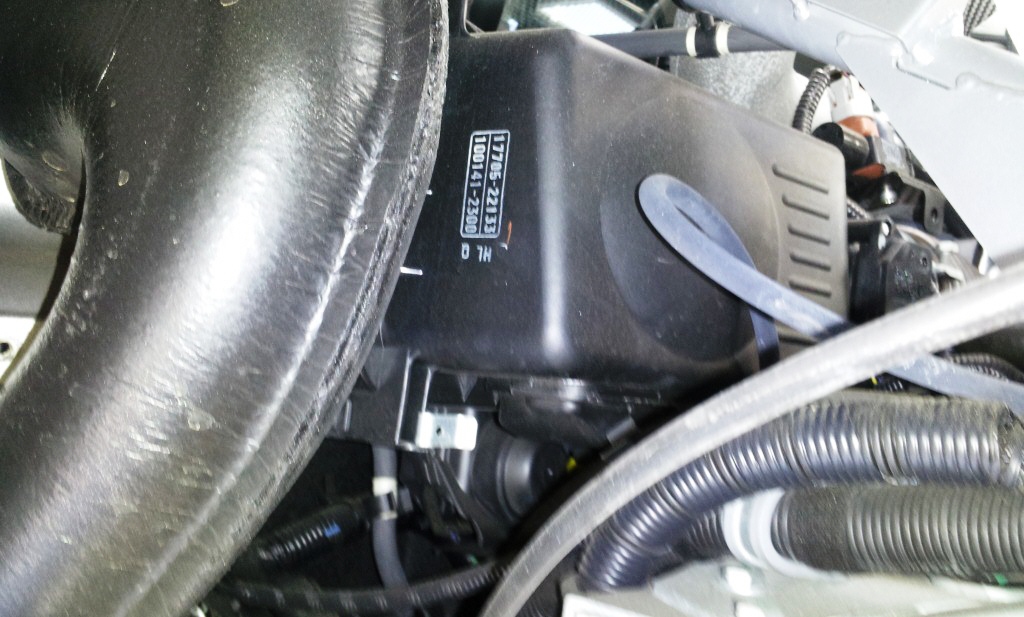

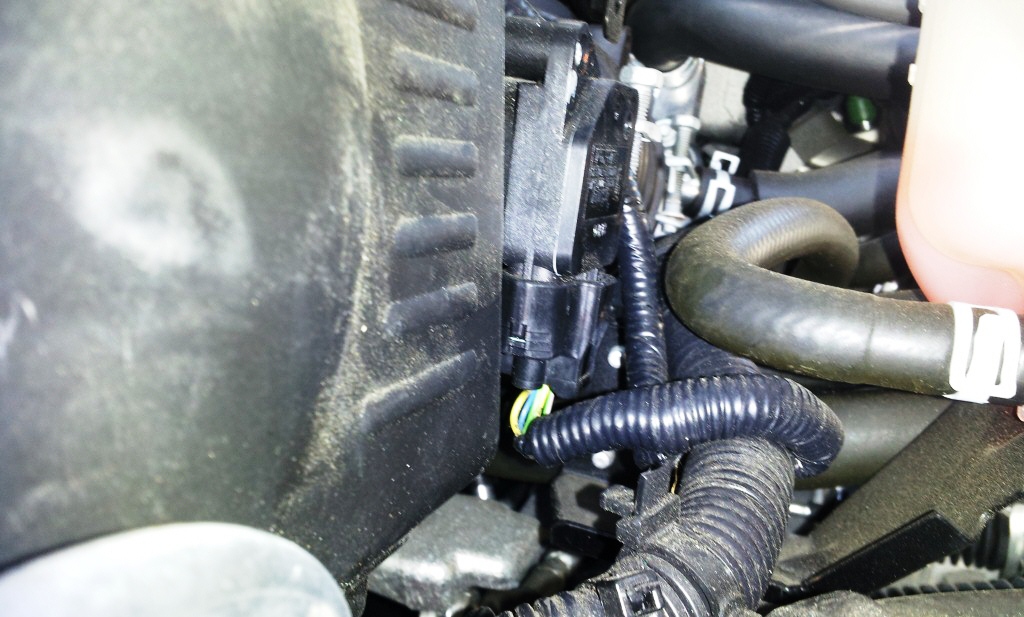

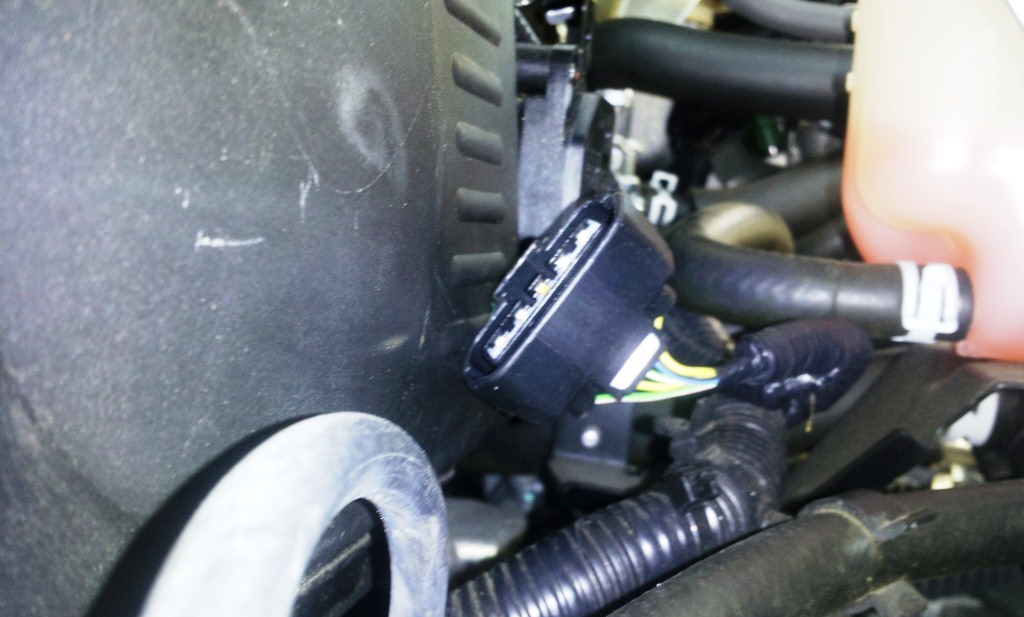

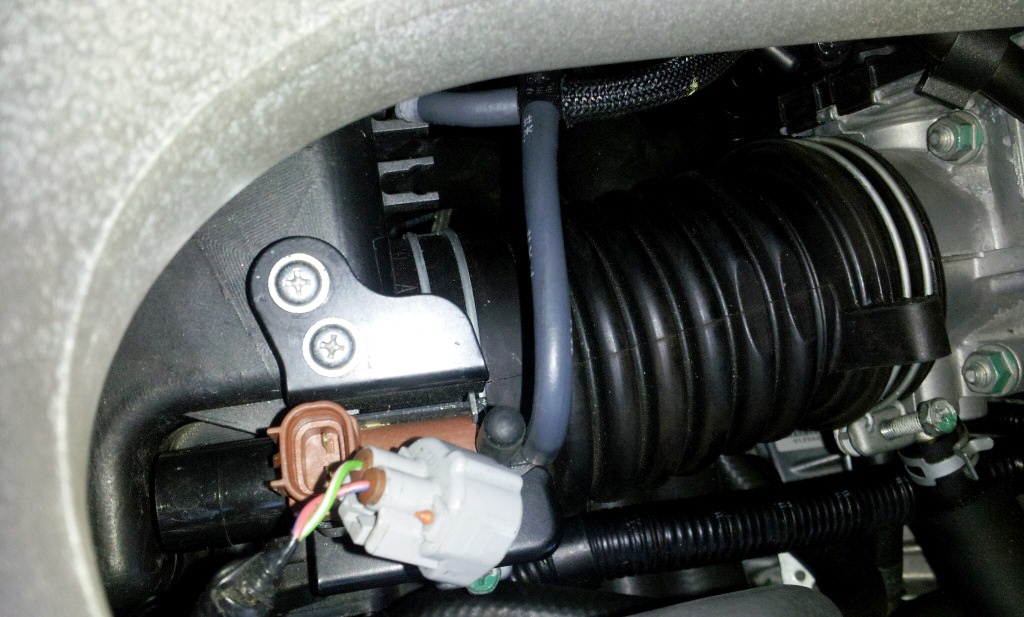

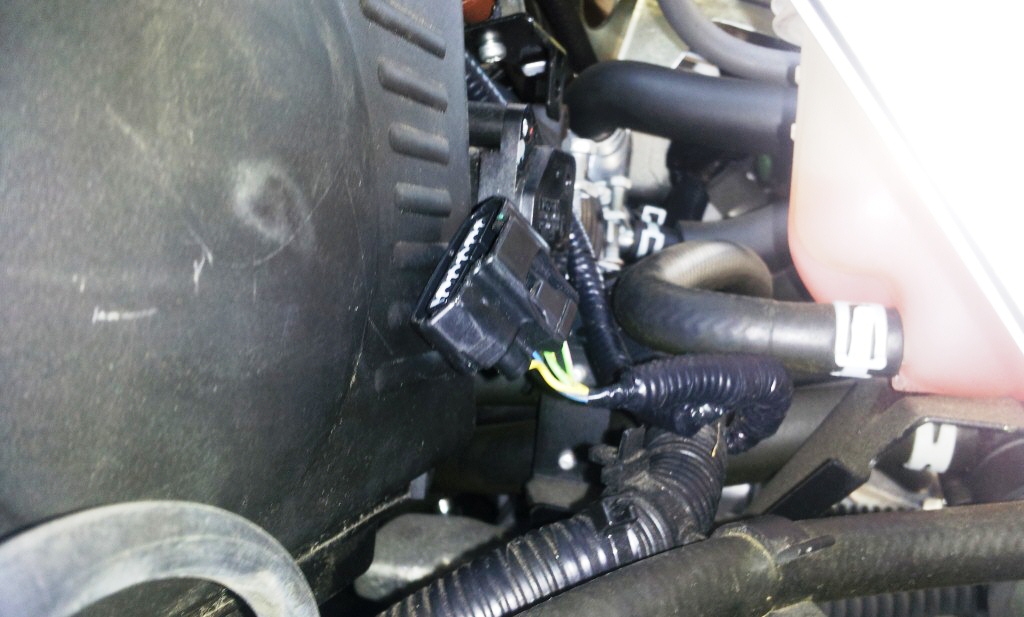

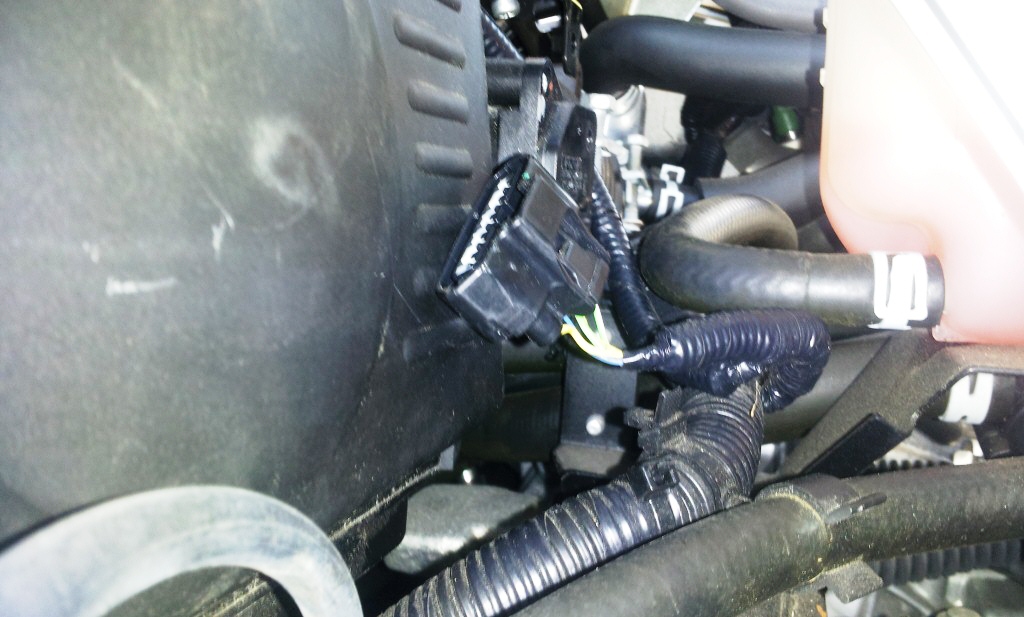

Removed the electrical connections.  This one was hard.  Pressed the side release in the front and pressed down.

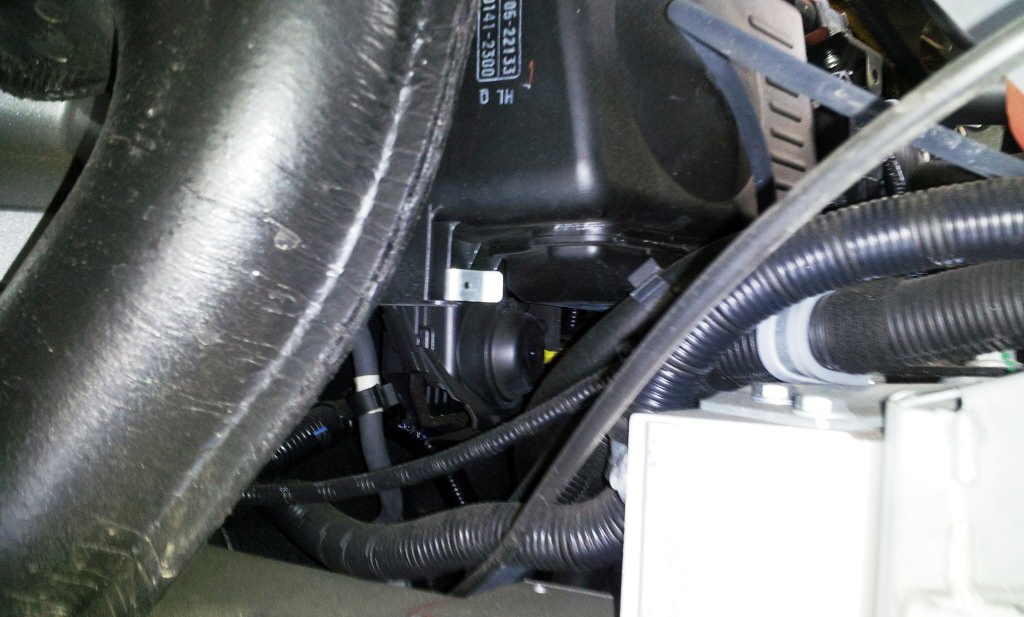

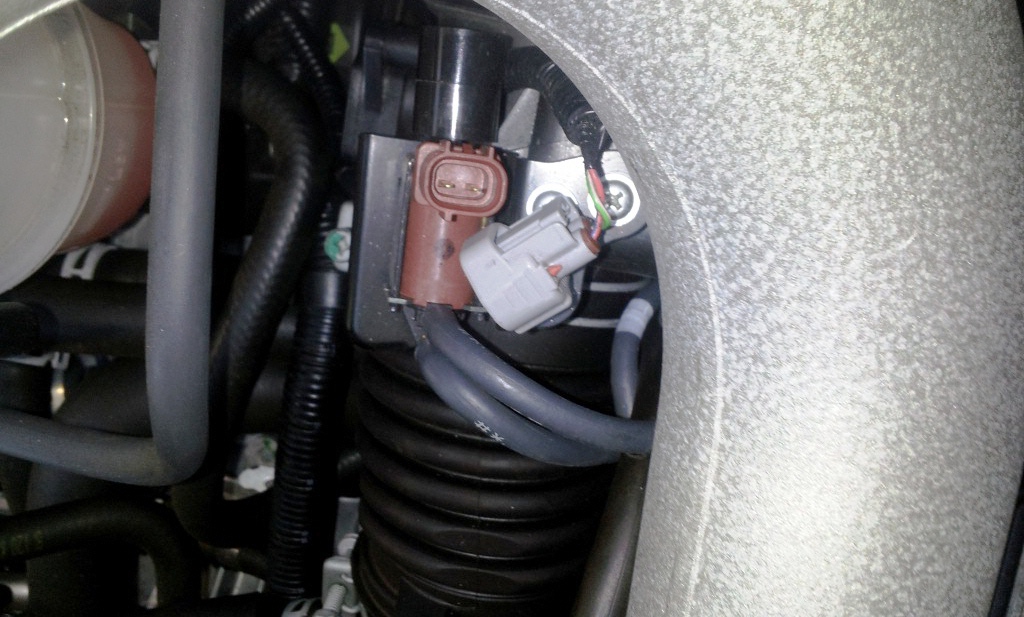

This one on the top was easy.

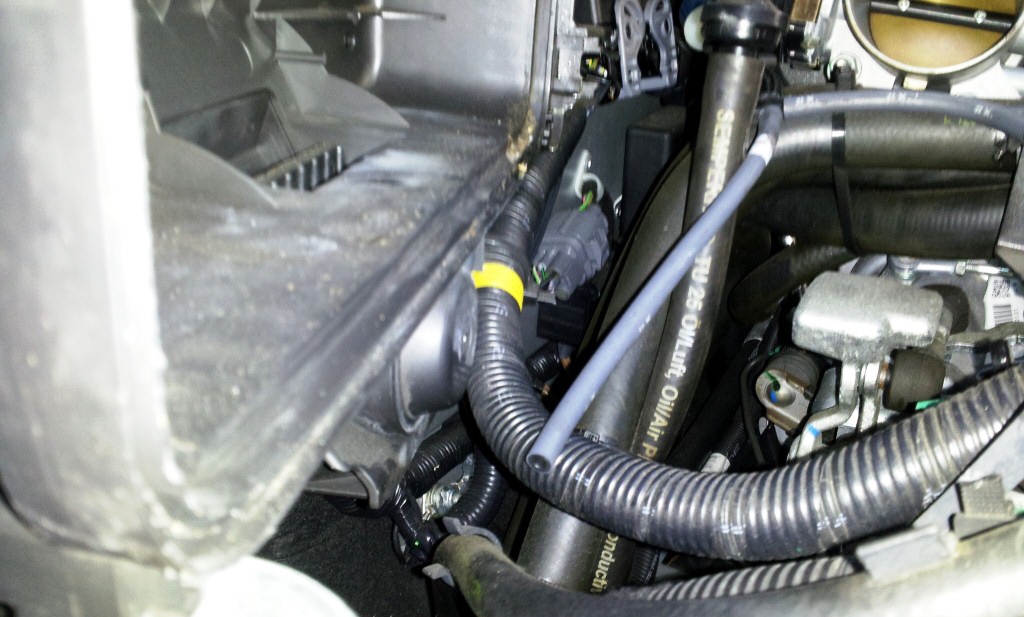

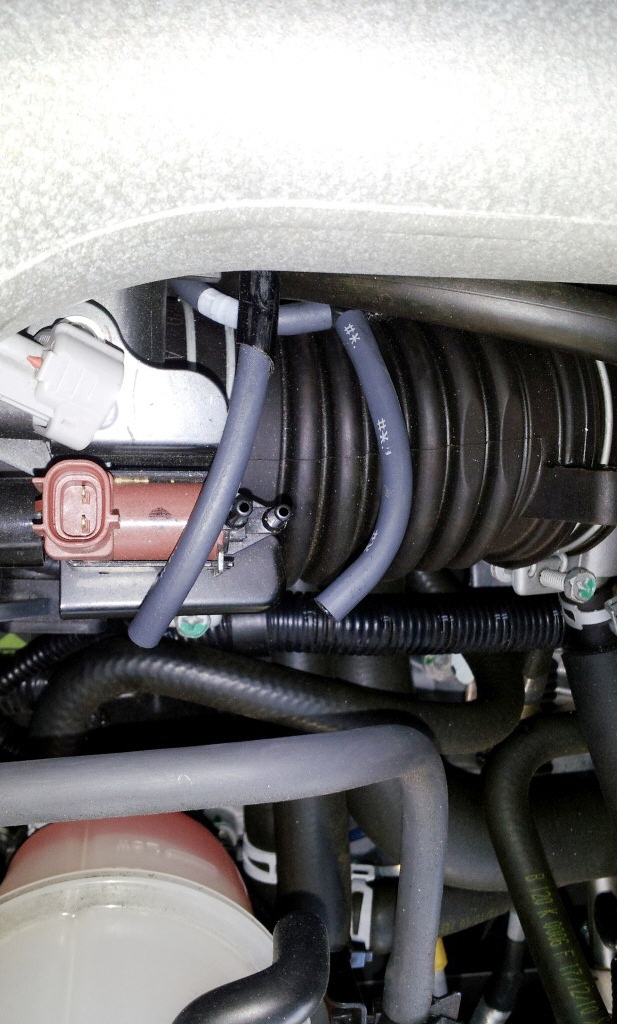

Removed the vacuum hoses.  The one on the left needs to be plugged, as it will not be needed with the new Cup Airbox.

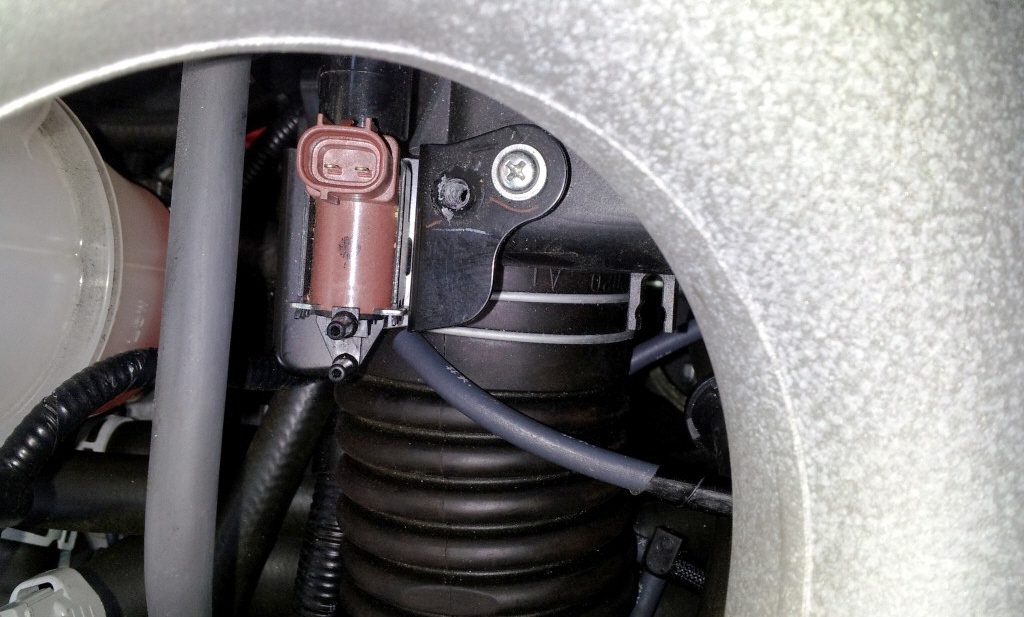

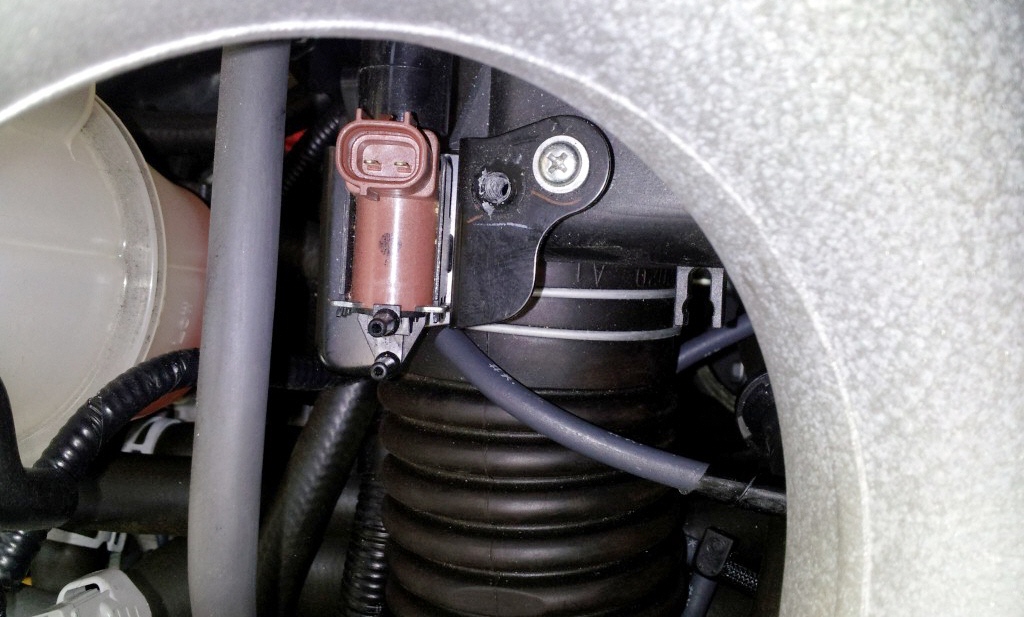

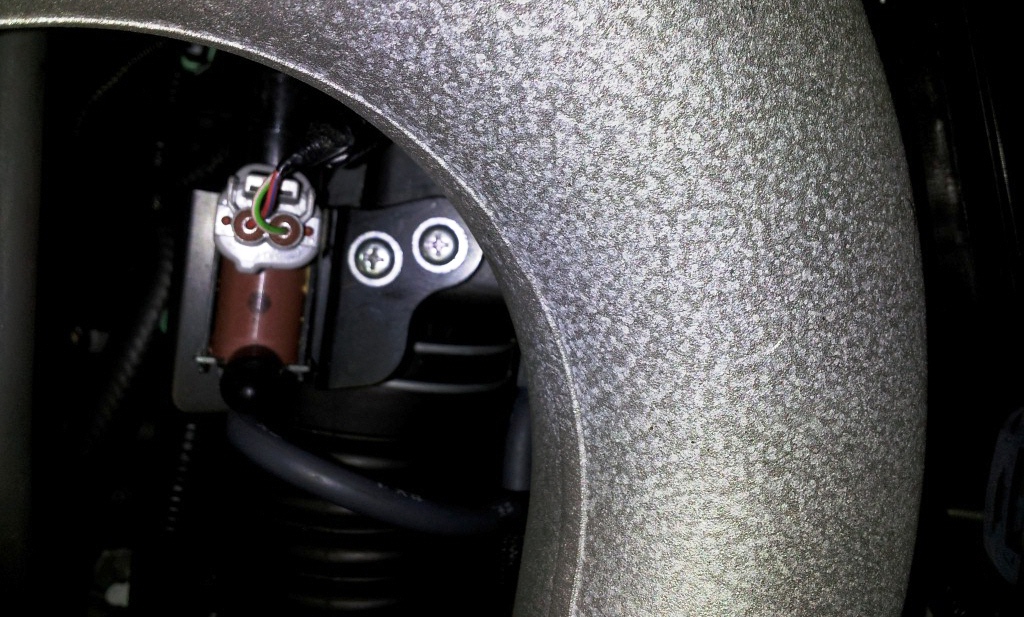

Unscrewed the valve control so the airbox can be removed.

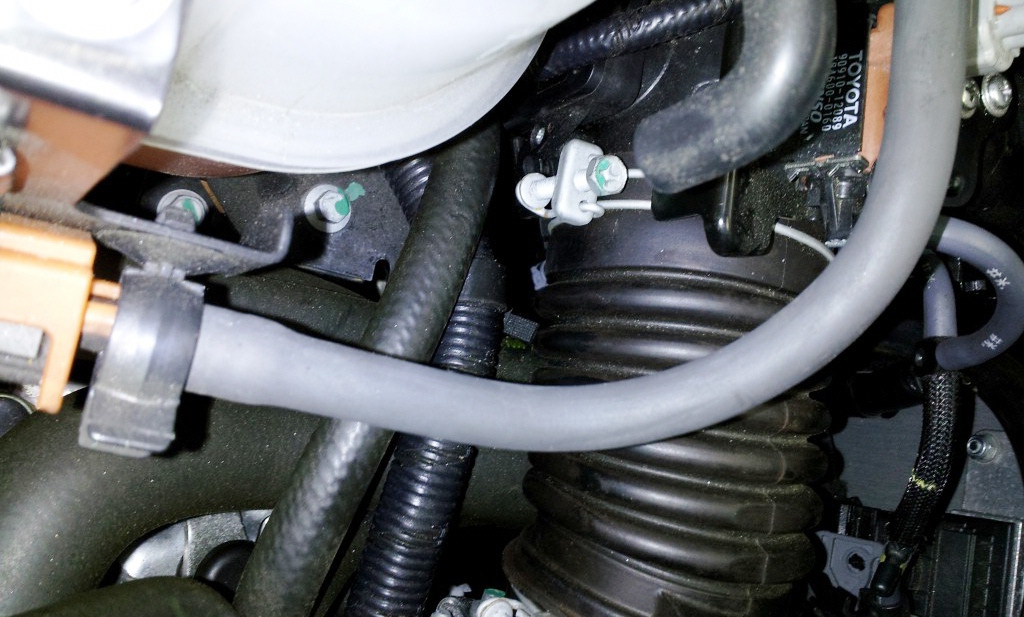

Removed the airbox clamp at the throttle.

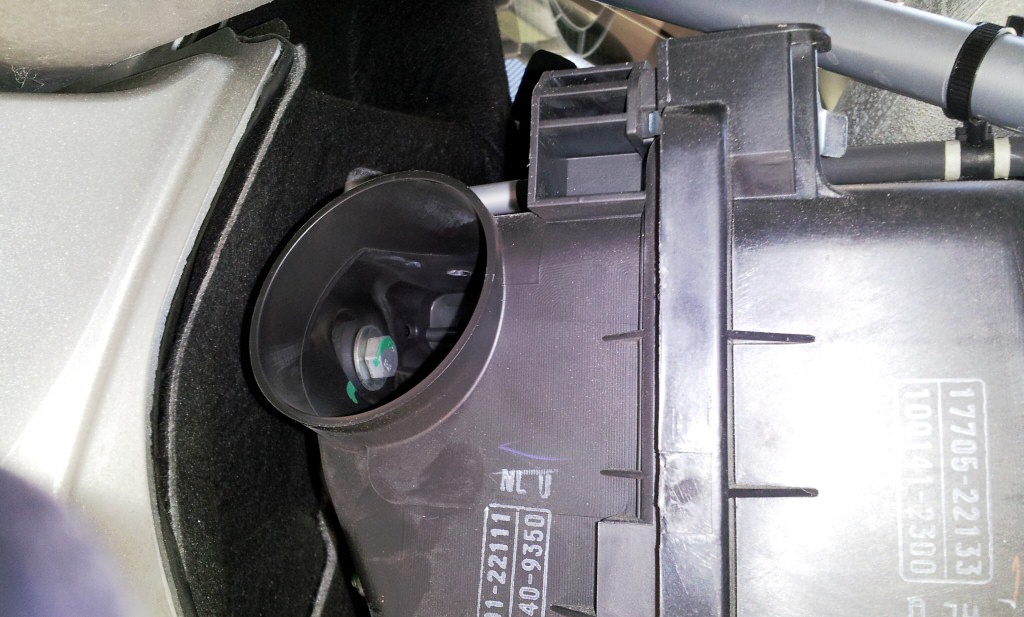

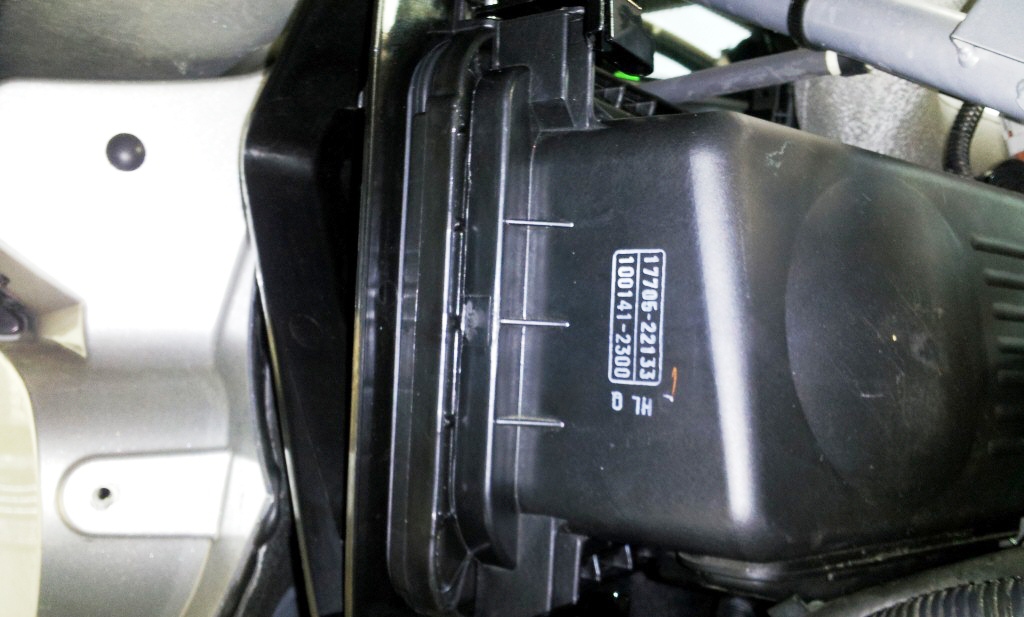

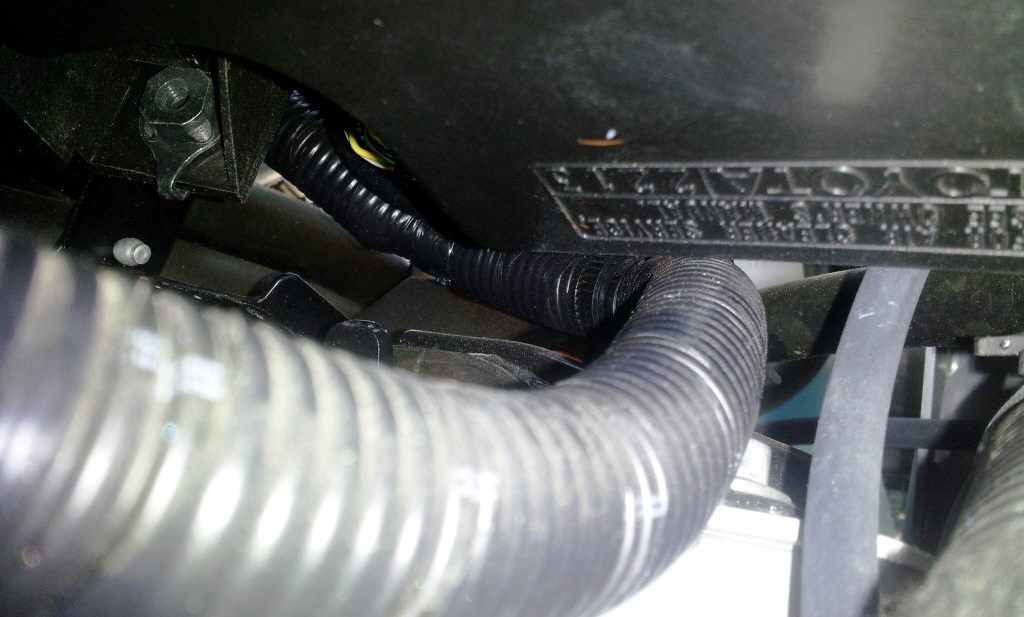

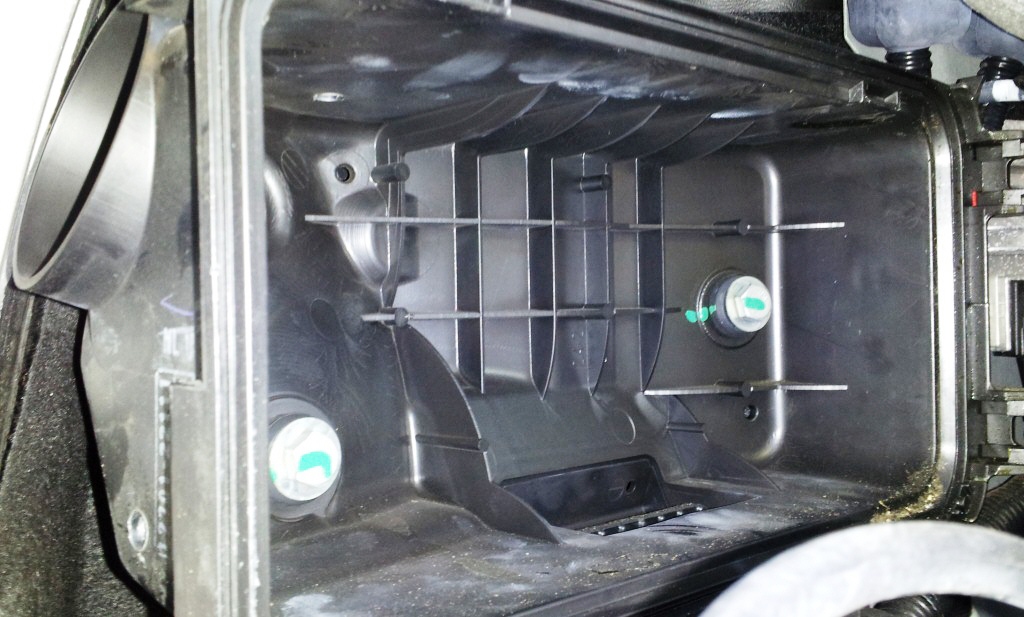

Before you can take the box out you will need to remove the hose that is connected to the bottom left side.  And it is out.

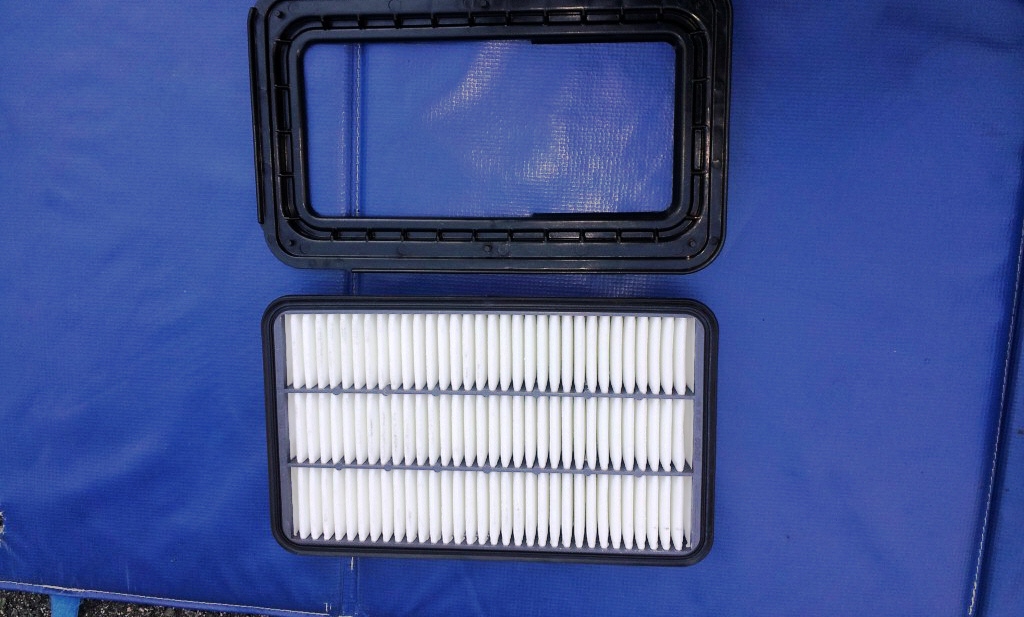

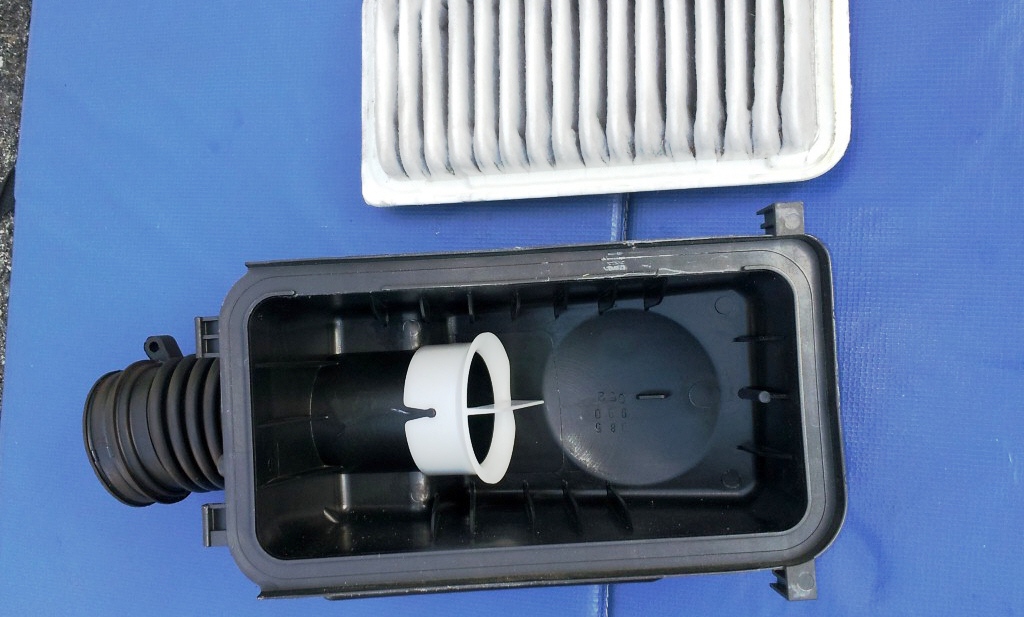

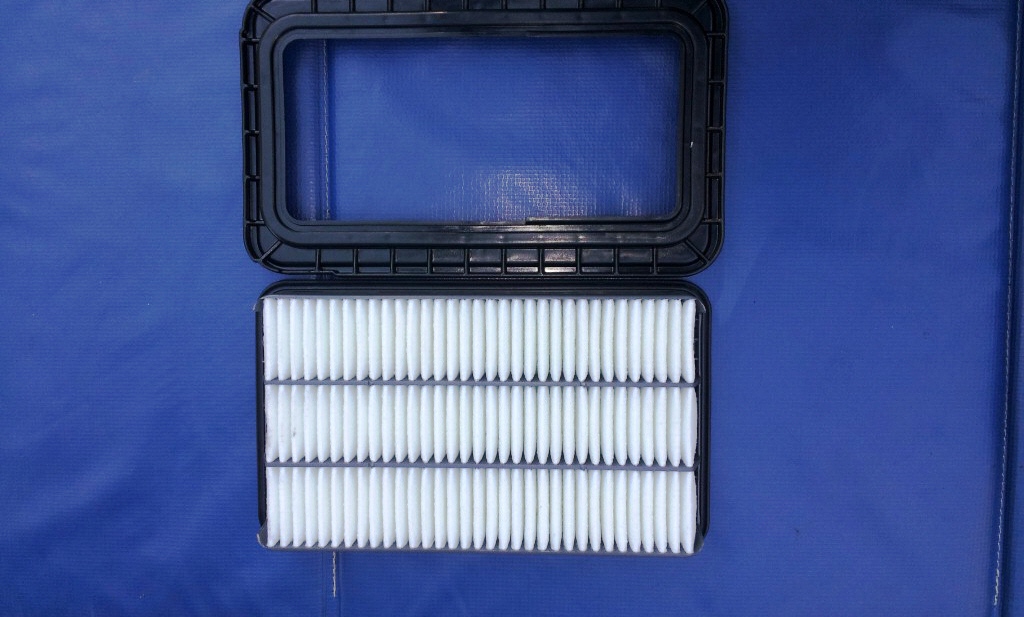

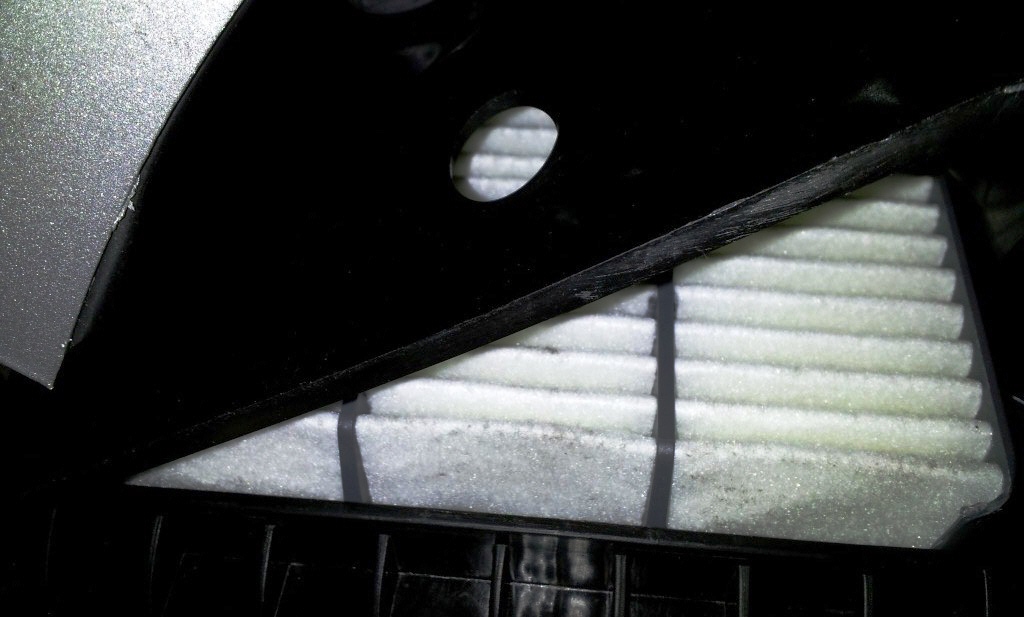

Removed the other section.

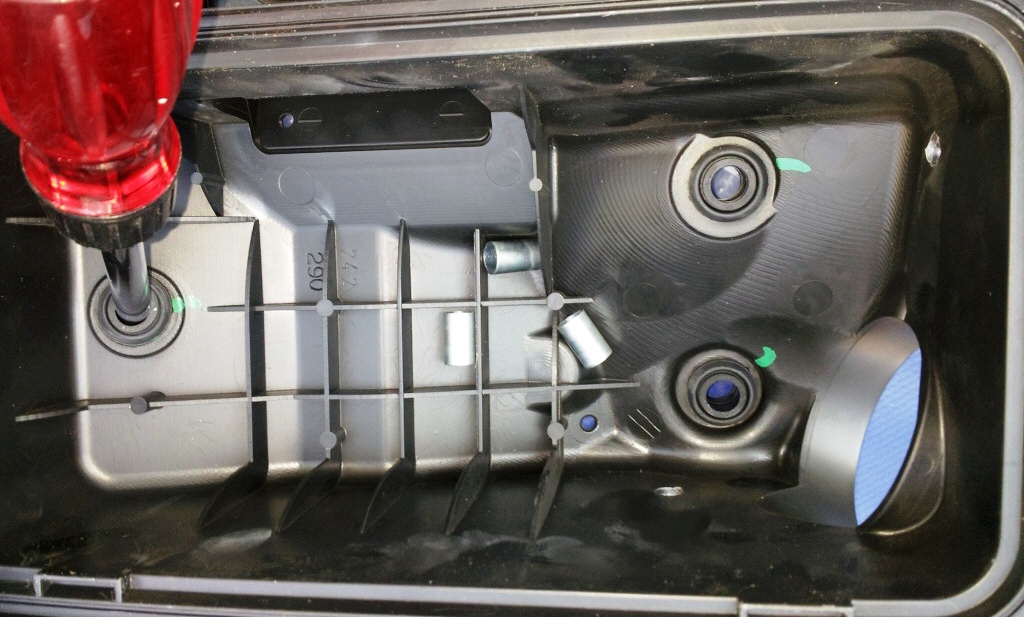

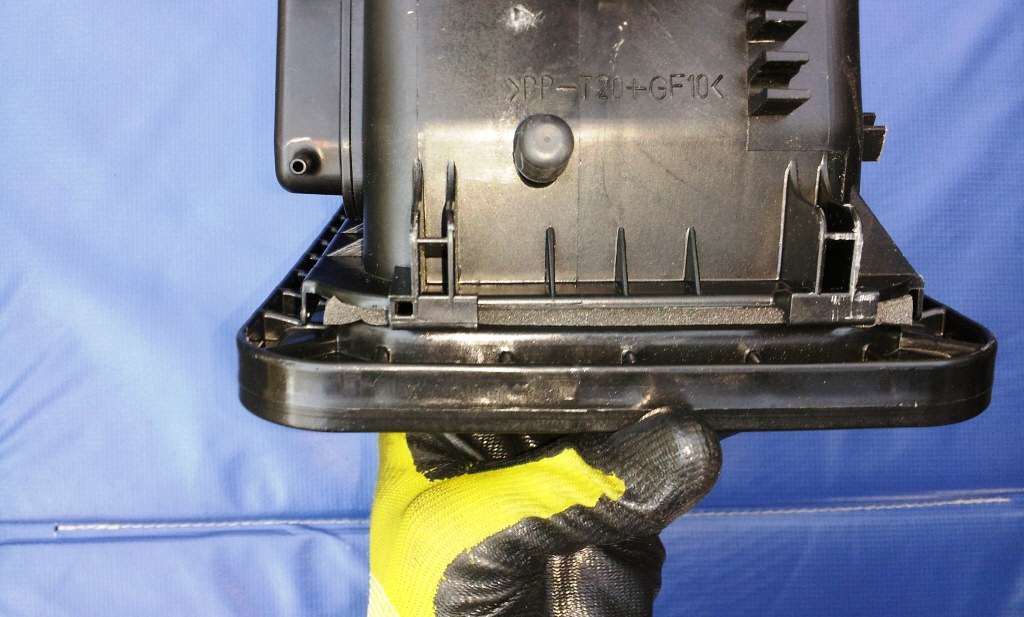

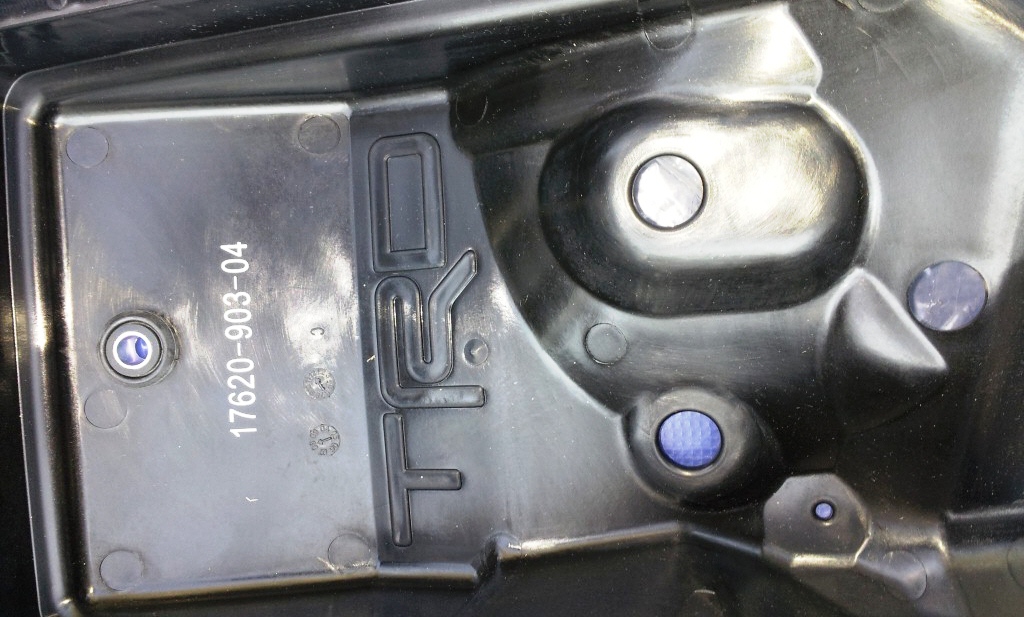

The bolt insulator was removed from the old and installed on the new.

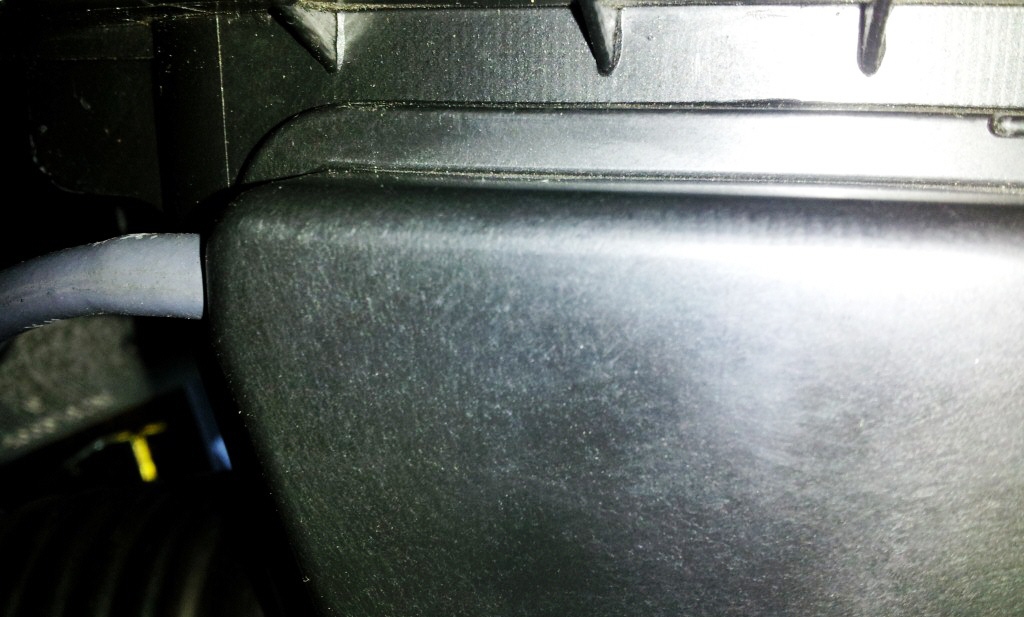

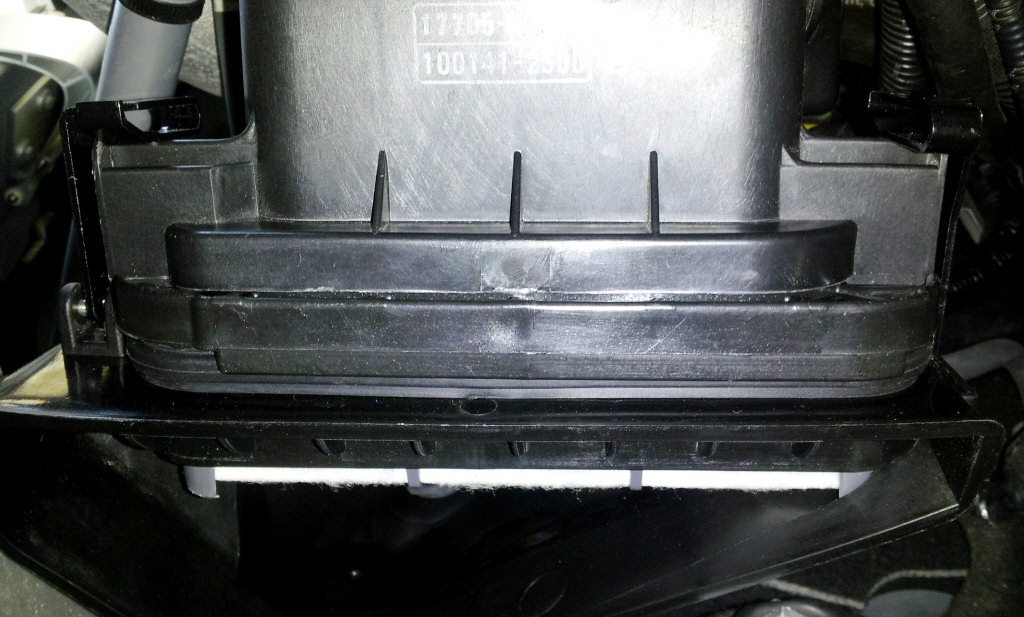

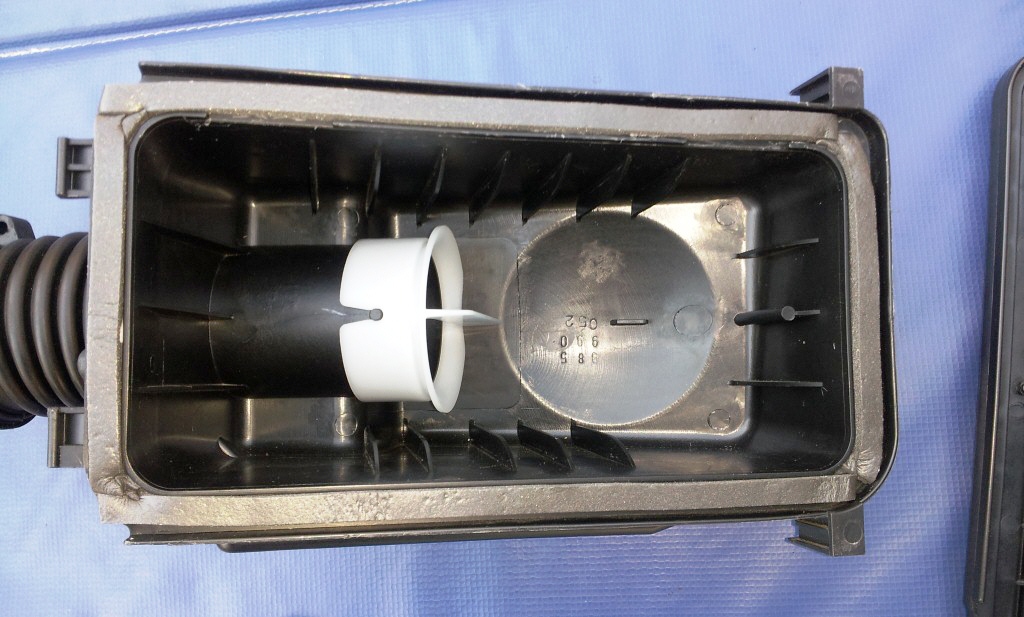

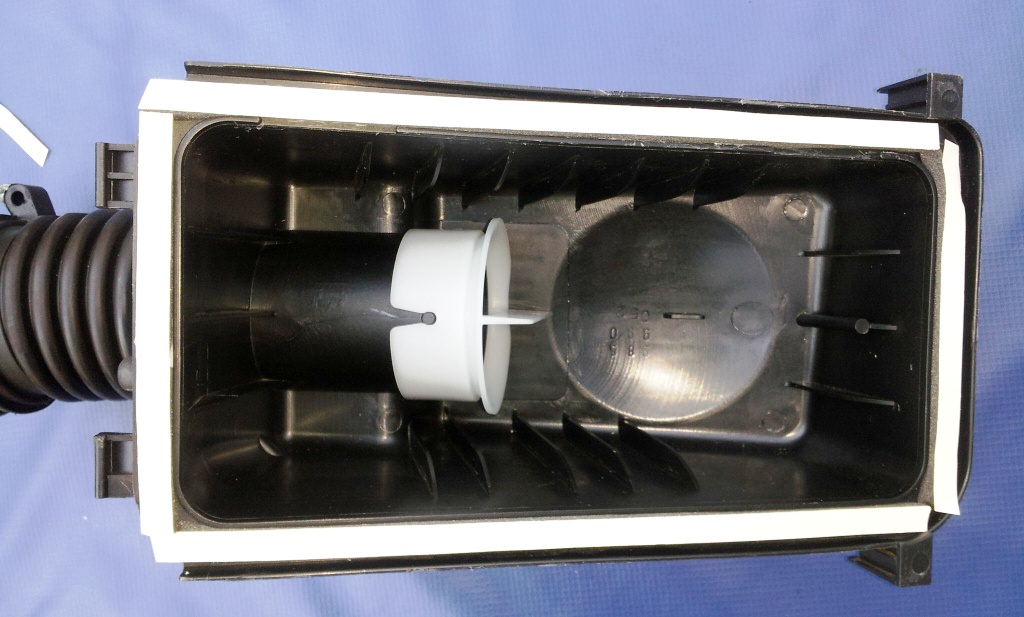

I used some rubber foam to seal the space.



Installed everything back.

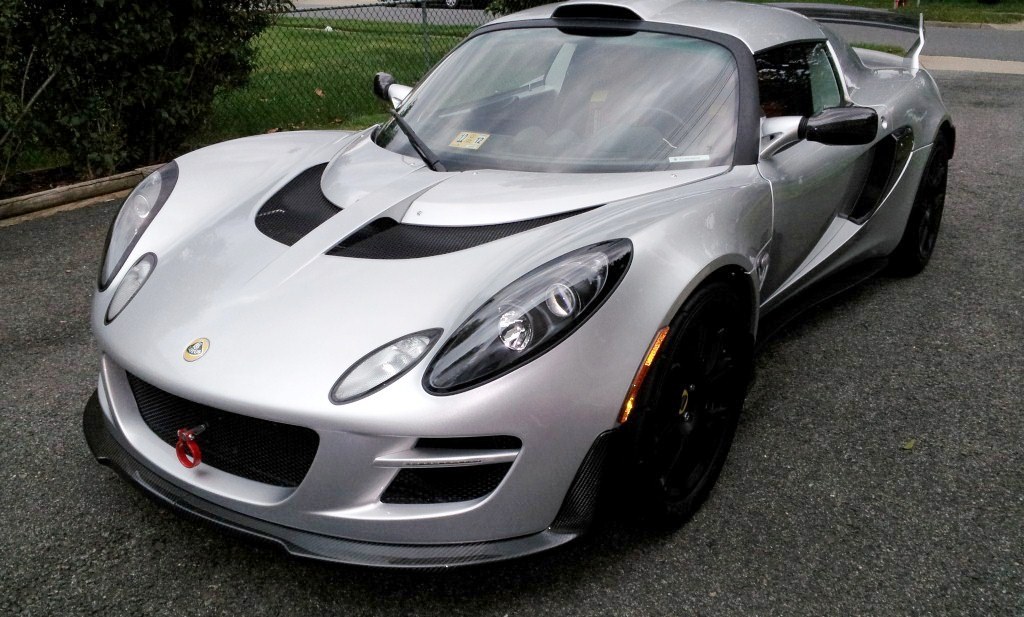

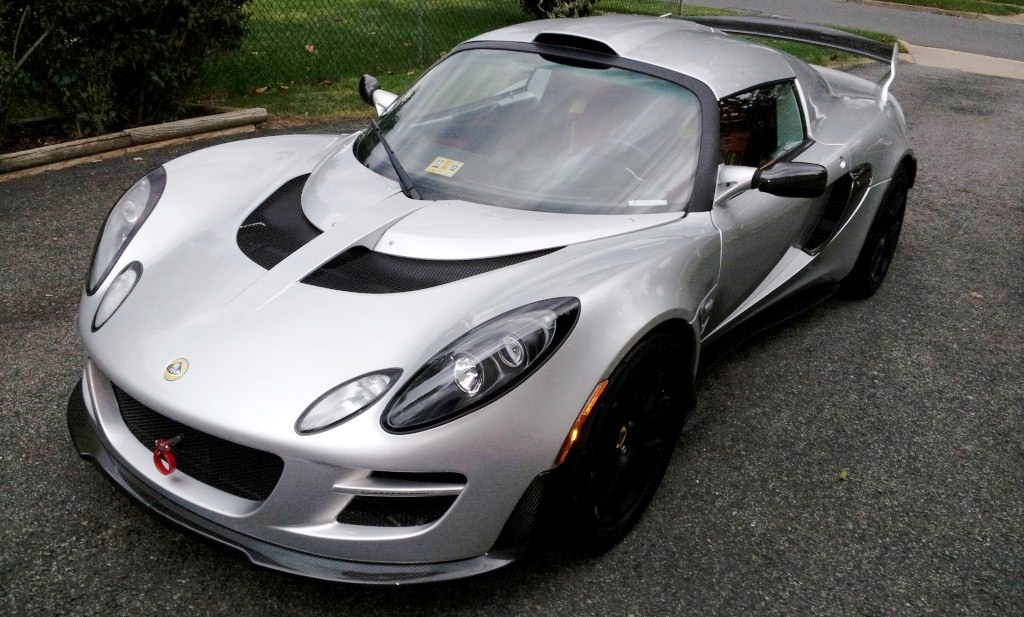

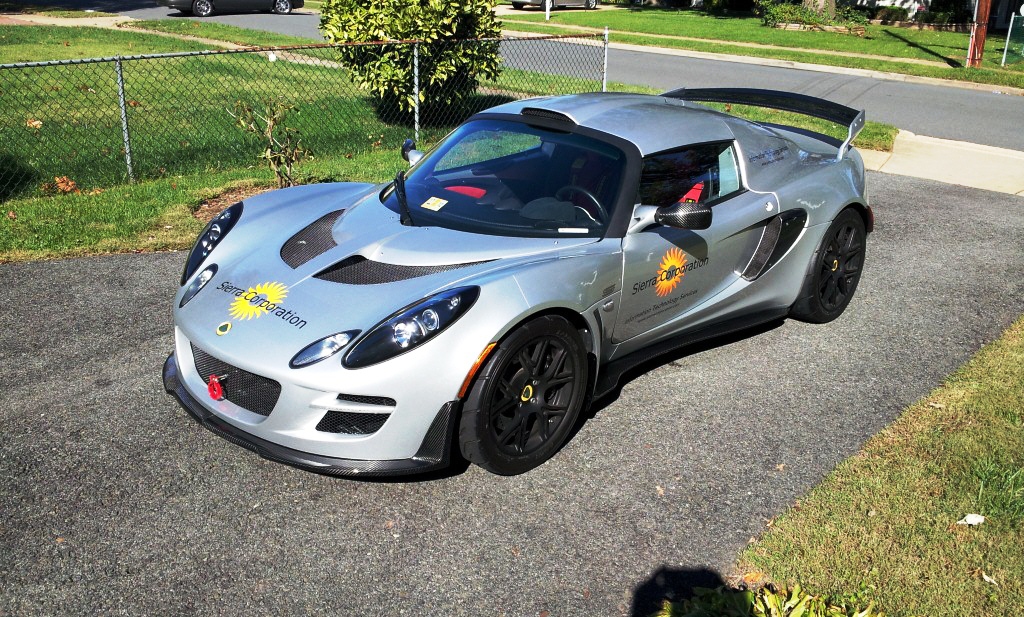

Installed the roof since it is getting colder.
